Rice University and Canadian global health design firm Metric Technologies have developed a portable, automated bag valve mask (BVM) ventilation unit to help patients in treatment for COVID-19. Designed for affordability and utilizing off-the-shelf components, ApolloBVM can be built for less than $300 worth of parts and can squeeze a common bag valve mask for hours on end. The plans for the portable ventilator are freely available online and can be accessed by anyone in the world, including developing nations where such equipment is not widely available.

With the novel coronavirus gaining steam and a shortage of ventilators not only in the United States but around the world, ApolloBVM could help COVID-19 patients who are less-critically ill while they await availability of a standard hospital ventilator. In lab tests with an artificial lung, the latest prototype delivered nonstop air for 24 hours, until the device was turned off.

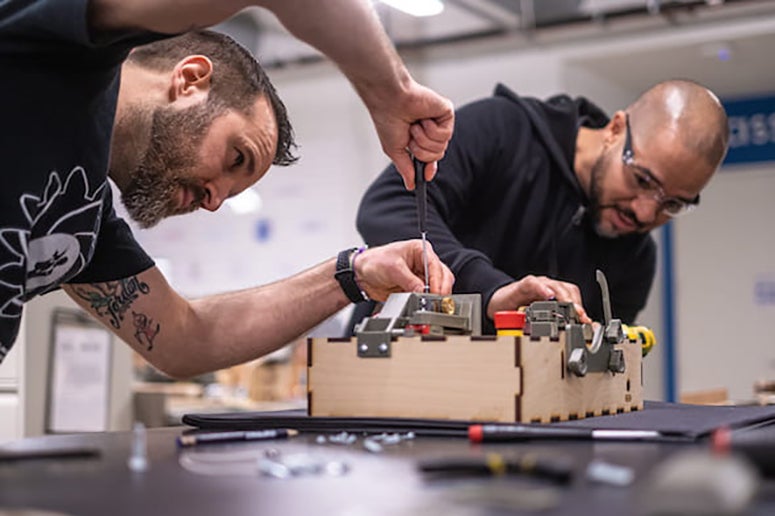

Staffers at Rice University’s Oshman Engineering Design Kitchen assemble a prototype of the ApolloBVM bag valve mask automation device
Staffers at Rice University’s Oshman Engineering Design Kitchen assemble a prototype of the ApolloBVM bag valve mask automation device

"The immediate goal is a device that works well enough to keep noncritical COVID-19 patients stable and frees up larger ventilators for more critical patients," said Amy Kavalewitz, executive director of Rice’s Oshman Engineering Design Kitchen(OEDK).

The project first developed by students as a senior design project in 2019 has been brought up to medical grade by Rice engineers and one student, with the help of Texas Medical Center doctors.

“This is going to make a difference in hospitals that run out of ventilators,” said Dr. Rohith Malya, adviser to the Rice engineering team. “Those that have relationships with a production facility that can quickly produce them should seek FDA emergency use authorization. We’re working locally to get that done.”

Since Rice announced the team’s completion of a new prototype on March 27, more than 500 people from more than 50 countries have requested information about the project, including interest from clinicians, engineers, manufacturers and do-it-yourselfers.

The Department of Defense is another group interested in ApolloBVM. The U.S. Navy invited several institutions to submit proposals to develop a low-cost, mechanical ventilation support system that can be rapidly produced with widely available resources.

Rice faculty and students went into overdrive several weeks ago when requests began pouring into the university seeking plans for an early prototype of the device, which is programmable to automatically squeeze a bag valve mask. Traditionally these masks are carried by emergency medical personnel to help get air into the lungs of people having difficulty breathing on their own but are difficult to squeeze by hand for more than a few minutes at a time.

Rice administrators, staff and students worked to develop a more robust prototype built primarily of 3D-printed and laser-cut parts. Their solution, designed and prototyped within a week, is a reconfiguration of the original device and designed to be not only medical grade, but also inexpensive enough to be considered disposable.

ventilator
ApolloBVM is a bag valve mask automation device meant for emergency use when patients, including those with COVID-19, need assistance to breathe

“This is as simple as it can get, with all readily available parts,” said Danny Blacker, the OEDK’s engineering design supervisor.

Malya said the name ApolloBVM is a tribute to Rice’s history with NASA and President John F. Kennedy’s famous speech kicking off the nation’s efforts to go to the moon. “This project appeals to our ingenuity, it’s a Rice-based project and it’s for all of humanity,” he said. “And we’re on an urgent timescale. We decided to throw it all on the table and see how far we go.”

“We have been working long hours, but if we are able to make at least one COVID-19 patient more comfortable, it will be all worth it” Kavalewitz said.

Rice is working with manufacturers seeking to ramp up production of a hospital-grade device as soon as possible to address current needs.

The plans for Rice University’s ApolloBVM can be accessed at www.oedk.rice.edu/apollobvm.
